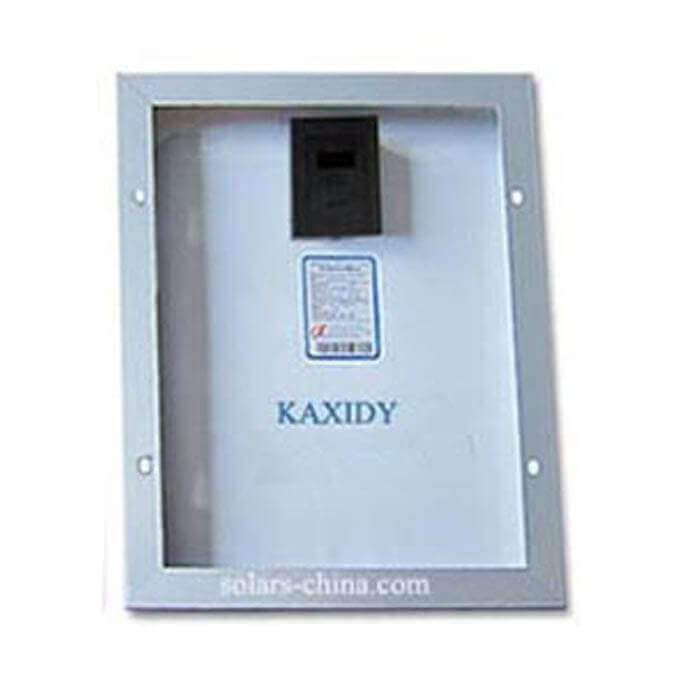

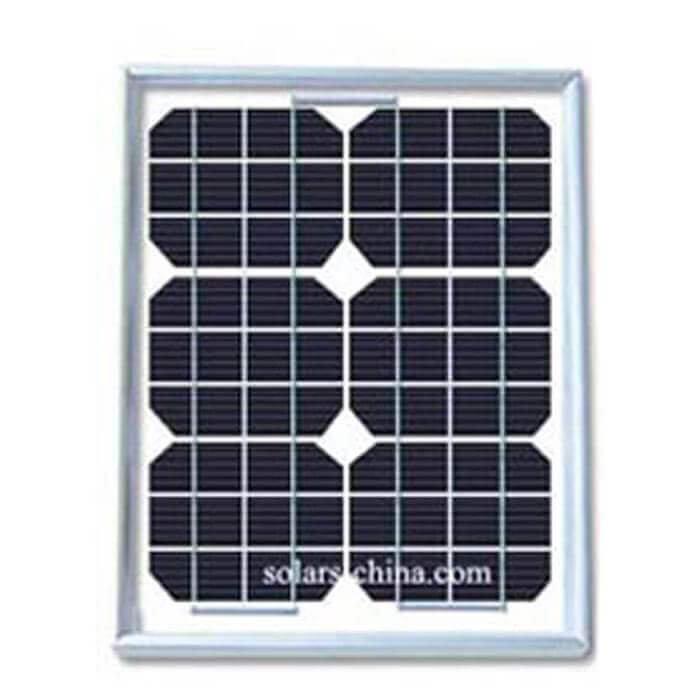

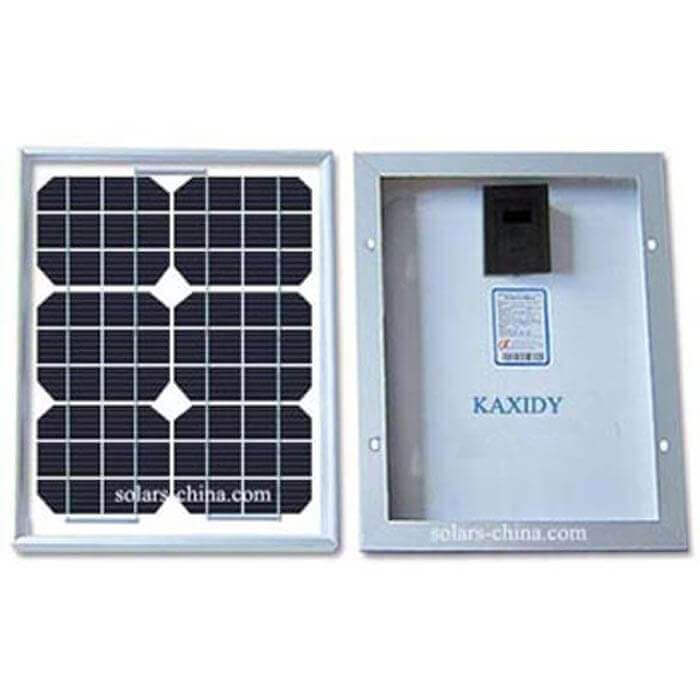

30Watt Monocrystalline Solar Panel
Description: |
| -- Highly sufficient and stable polycrystalline solar panel |
| -- Different power output available, range from 5 Watt to 300Watt |
| -- Comes With junction box and by pass diode |
| -- Charge 6V and 12V batteries of all type. Can be used as power source for power stations,
or battery charger for vehicle, boat, electric fence, pump…. |
| --Multiple pieces can be connected to acquire higher power |
| |
| Lamination: |
--Anodized aluminum alloy frame |
--Low iron high transparency temper glass cover |
--Solar cell embedded in EVA (ethylene vinyl acetate) |
--Tedlar foil backing |
Monocrystalline Solar Panel Electrical Characteristics
Item No. |
KS-M24W |
KS-M26W |
KS-M28W |
KS-M30W |
Peak Power(WP) |
24W |
26W |
28W |
30W |
Power Tolerance |
±5% |
±5% |
±5% |
±5% |
Voltage at Pmax(VMP) |
17.4V |
17.4V |
17.4V |
17.4V |
Current at Pmax(IMP) |
1.38A |
1.49A |
1.61A |
1.72A |
Open circuit voltage(VOC) |
21.6V |
21.6V |
21.6V |
21.6V |
Short circuit current(ISC) |
1.52A |
1.64A |
1.77A |
1.89A |
Weight(KG) |
3.5 |
3.5 |
3.5 |
3.5 |
Efficiency(%) |
15.3 |
15.3 |
15.3 |
15.3 |
Max system voltage |
700V |
700V |
700V |
700V |
Max Series Fuse Rating |
8A |
8A |
8A |
8A |
Dimension |
540*420*25mm |
Cell type |
Monocrystalline silicon solar cell,125*125mm |
| Standard Test Condition |
Illumination 1000W/m²,Module temperature 25℃,AM=1.5
|
Temperation coefficients:
Noct: |
48℃±2℃ |
Current temperature coefficient |
0.06±0.01%/K |
Voltage temperature coefficient |
-(78±10)MV/K |
Power temperature coefficient |
-(0.5±0.05)%/K |
Mechanical Characteristics:
junction box |
Ip54 rated |
Warranty |
Pm is not less than 90% in 10 years and 80% in 20 years |
Packing |
10PCS/CTN |
Carton Size |
555*320*435mm(21.8"*12.6"*17.1") |
Resistances |
227g stell ball fall down from 1m height and 60m/s wind |
|
Monocrystalline solar module
